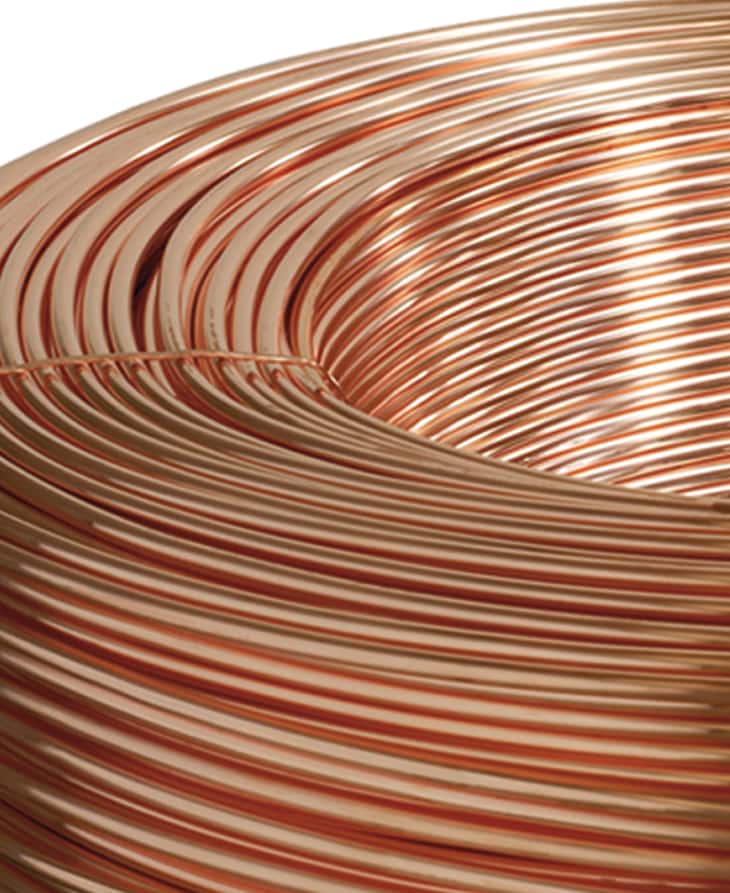

Arames redondos de cobre para aplicações elétricas.
Na Bronmetal, fornecemos arame de cobre de alta qualidade com diâmetros de 0,5 mm a 10 mm. Outras dimensões disponíveis mediante consulta comercial.
Designação do material | Medida mm | Dureza | Resistência à tração | Limite Convencional de elasticidade 0,2% | Alongamento | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
redonda, cuadrada, hexagonal | rectangular | ||||||||||||||||||
espesor | anchura | HB | HV | Rm | Rp0.2 | A100mm | A | ||||||||||||
Simbólica | Numérica | Estado metalúrgico | desde | Maior que | Até inclusive | desde | Maior que | Até inclusive | desde | Maior que | Até inclusive | mín. | máx. | mín. | máx. | N/mm2 | N/mm2 | % | % |
mín. | mín. | mín. | |||||||||||||||||
Cu-ETP Cu-FRHC Cu-OF Cu-OFE CuAg0,04 CuAg0,07 CuAg0,10 CuAg0,04P CuAg0,07P CuAg0,10P CuAg0,04(OF) CuAg0,07(OF) CuAg0,10(OF) Cu-PHC Cu-HCP Cu-PHCE | CW004A CW005A CW008A CW009A CW011A CW012A CW013A CW014A CW015A CW016A CW017A CW018A CW019A CW020A CW021A CW022A | D | 2 | - | 160 | 0,5 | - | 40 | 1 | - | 200 | Produto estirado a frio sem propriedades específicas | |||||||
H035a | 2 | - | 160 | 0,5 | - | 40 | 1 | - | 200 | 35 | 65 | 35 | 65 | - | - | - | - | ||
H200a | 2 | - | 160 | 1 | - | 40 | 5 | - | 200 | - | - | - | - | 200 | máx.120 | 25 | 35 | ||
H065 | 2 | - | 80 | 0,5 | - | 40 | 1 | - | 200 | 65 | 90 | 70 | 95 | - | - | - | - | ||
R250 | 2 | - | 10 | 1 | - | 10 | 5 | - | 200 | - | - | - | - | 250 | mín. 200 | 8 | 12 | ||
R250 | - | 10 | 140 | - | - | - | - | 10 | 200 | - | - | - | - | 250 | mín. 180 | - | 15 | ||
R230 | - | 30 | 80 | - | 10 | 40 | - | 10 | 200 | - | - | - | - | 230 | mín. 160 | - | 18 | ||
H085 | 2 | - | 40 | 0,5 | - | 20 | 1 | - | 120 | 85 | 110 | 90 | 115 | - | - | - | - | ||
H075 | - | 40 | 80 | - | 20 | 40 | - | 20 | 160 | 75 | 100 | 80 | 105 | - | - | - | - | ||
R300 | 2 | - | 20 | 1 | - | 10 | 5 | - | 120 | - | - | - | - | 300 | mín. 260 | 5 | 8 | ||
R280 | - | 20 | 60 | - | 10 | 20 | - | 10 | 120 | - | - | - | - | 280 | mín. 240 | - | 10 | ||
R260 | - | 40 | 60 | - | 20 | 40 | - | 20 | 160 | - | - | - | - | 260 | mín. 220 | - | 12 | ||
H100 | 2 | - | 10 | 0,5 | - | 5 | 1 | - | 120 | 100 | - | 110 | - | - | - | - | - | ||
R350 | 2 | - | 10 | 1 | - | 5 | 5 | - | 120 | - | - | - | - | 350 | mín. 320 | 3 | 5 | ||
NOTA - 1 N/mm2 é equivalente a 1 Mpa | |||||||||||||||||||
a recozido. |
EN | DIN | ASTM | AFNOR | BS | JIS | SN | ||
---|---|---|---|---|---|---|---|---|
SIMBOLICA | NUMERICA | SIMBOLICA | NUMERICA | |||||
Cu-ETP | CW004A | E-Cu58 | 20065 | C11000 | CuA1 | C101 | C1100 | Cu-ETP |
Cu-OFE | CW009A | - | - | C10100 | CuC2 | C110 | - | Cu-OFE |
Cu-OF | CW008A | OF-Cu | 2.0040 | C10200 | CuC1 | C103 | C1020 | Cu-OF |
Cu-HCP | CW021A | Se-Cu | 2.0070 | - | - | - | - | - |
Cu-PHC | CW020A | Se-Cu | 2.0070 | C10300 | - | - | - | Cu-HCP |
Cu-PHCE | CW022A | - | - | - | - | - | - | - |
CuAg0,10 | CW013A | CuAg0,10 | 2.1203 | C10700 | - | - | - | - |
C10940 | ||||||||
C11600 | ||||||||
CuAg0,04P | CW014A | - | - | C11904 | - | - | - | - |
CuAg0,10P | CW016A | CuAg0,1P | 2.1197 | C11907 | - | - | - | CuAg0,1P |
Cu-DHP | CW024A | SF-Cu | 2.0090 | C12200 | CuB1 | C106 | C1220 | - |
C1221 | ||||||||
Cu-DLP | CW023A | SW-Cu | 2.0076 | C12000 | CuB2 | - | - | Cu-DLP |
CuTeP | CW118C | CuTeP | 2.1546 | C14500 | CuTe 1336 | C109 | - | CuTeP |
CuFe2P | CW107C | CuFe2P | 2.1310 | C19400 | - | CW107C | - | - |
Cu-S | CW114C | CuSP | 2.1498 | C14700 | Cu-S 1336 | C111 | - | Cu-S |
Designação do material | Composição en % (fração másica) | |||||||||
---|---|---|---|---|---|---|---|---|---|---|
Elemento | Cu | Ag | Bi | O | P | Pb | Outros elementos (consultar nota) | |||
Simbólica | Numérica | |||||||||
Total | Excluido | |||||||||
Cu-ETP | CW004A | mín. | 99.90a | - | - | - | - | - | - | Ag, O |
máx. | - | - | 0,0005 | 0.040b | - | 0,005 | 0,03 | |||
Cu-FRHC | CW005A | mín. | 99.90a | - | - | - | - | - | - | Ag, O |
máx. | - | - | - | 0.040b | - | - | 0,06 | |||
Cu-OF | CW008A | mín. | 99.95a | - | - | - | - | - | - | Ag |
máx. | - | - | 0,0005 | -c | - | 0,005 | 0,03 | |||
CuAg0,04 | CW011A | mín. | Resto | 0,03 | - | - | - | - | - | Ag, O |
máx. | - | 0,05 | 0,0005 | 0,040 | - | - | 0,03 | |||
CuAg0,07 | CW012A | mín. | Resto | 0,06 | - | - | - | - | - | Ag, O |
máx. | - | 0,08 | 0,0005 | 0,040 | - | - | 0,03 | |||
CuAg0,10 | CW013A | mín. | Resto | 0,08 | - | - | - | - | - | Ag, O |
máx. | - | 0,12 | 0,0005 | 0,040 | - | - | 0,03 | |||
CuAg0,04P | CW014A | mín. | Resto | 0,03 | - | - | 0,001 | - | - | Ag, P |
máx. | - | 0,05 | 0,0005 | -c | 0,007 | - | 0,03 | |||
CuAg0,07P | CW015A | mín. | Resto | 0,06 | - | - | 0,001 | - | - | Ag, P |
máx. | - | 0,08 | 0,0005 | -c | 0,007 | - | 0,03 | |||
CuAg0,10P | CW016A | mín. | Resto | 0,08 | - | - | 0,001 | - | - | Ag, P |
máx. | - | 0,12 | 0,0005 | -c | 0,007 | - | 0,03 | |||
CuAg0,04(OF) | CW017A | mín. | Resto | 0,03 | - | - | - | - | - | Ag, O |
máx. | - | 0,05 | 0,0005 | -c | - | - | 0,0065 | |||
CuAg0,07(OF) | CW018A | mín. | Resto | 0,06 | - | - | - | - | - | Ag, O |
máx. | - | 0,08 | 0,0005 | -c | - | - | 0,0065 | |||
CuAg0,10(OF) | CW019A | mín. | Resto | 0,08 | - | - | - | - | - | Ag, O |
máx. | - | 0,12 | 0,0005 | -c | - | - | 0,0065 | |||
Cu-PHC | CW020A | mín. | 99.95a | - | - | - | 0,001 | - | - | Ag, P |
máx. | - | - | 0,0005 | -c | 0,006 | 0,005 | 0,03 | |||
Cu-HCP | CW021A | mín. | 99.95a | - | - | - | 0,002 | - | - | Ag, P |
máx. | - | - | 0,0005 | -c | 0,007 | 0,005 | 0,03 | |||
NOTA- En total de otros elementos (distintos del cobre) está definido como la suma de Ag, As, Bi, Cd, Co, Cr, Fe, Mn, Ni, O, P, Pb, S, Sb, Se, Si, Sn, Te, y Zn, con la exclusión de cualquiera de los elementos cuyo valor este indicado individualmente. | ||||||||||
a Incluida la plata, hasta un máximo del 0.015%. | ||||||||||
b Está permitido un contenido de oxígeno de hasta el 0.060%, sometido a acuerdo entre cliente y suministrador | ||||||||||
c O conteúdo de oxigénio deve ser tal que o material cumpra com os requisitos de fragilização por aquecimento numa atmosfera de hidrogénio, da Norma EN 1976. |
Designação do material | Elemento | Composição en % (fração másica) | |||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Simbólica | Numérica | Cu | Ag | As | Bi | Cd | Fe | Mn | Ni | O | P | Pb | S | Sb | Se | Sn | Te | Zn | |
Cu-OFE | CW009A | mín. | 99,99 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
máx. | - | 0,002 5 | 0,000 5 | 0,000 20 | 0,000 1 | 0,0001 0 | 0,000 5 | 0,000 1 | _a | 0,000 3 | 0,000 5 | 0,001 5 | 0,000 4 | 0,000 20 | 0,000 2 | 0,000 20 | 0,000 1 | ||
Cu-PHCE | CW022A | mín. | 99,99 | - | - | - | - | - | - | - | - | 0,001 | - | - | - | - | - | - | - |
máx. | - | 0,002 5 | 0,000 5 | 0,000 20 | 0,000 1 | 0,0001 0 | 0,000 5 | 0,000 1 | _a | 0,006 | 0,000 5 | 0,001 5 | 0,000 4 | 0,000 20 | 0,000 2 | 0,000 20 | 0,000 1 | ||
a O conteudo de oxigênio deve ser mesmo material que cumpra as condições de fragilidade por aquecimiento em atmosfera de hidrogênio, segundo a norma EN 1976. |
